In the ever-evolving world of modern technology, cables play a crucial role in ensuring seamless data transmission. One such cable that has been garnering significant attention is the 12 Cores MPO|MTP cable. But what exactly are its applications? Let’s dive in and explore.
12 Cores MPO/MTP fiber cable mainly includes MPO/MTP trunk cable, MPO|MTP to LC breakout cable, and MPO to MPO conversion cable, choose the corresponding products to connect according to different application scenarios.

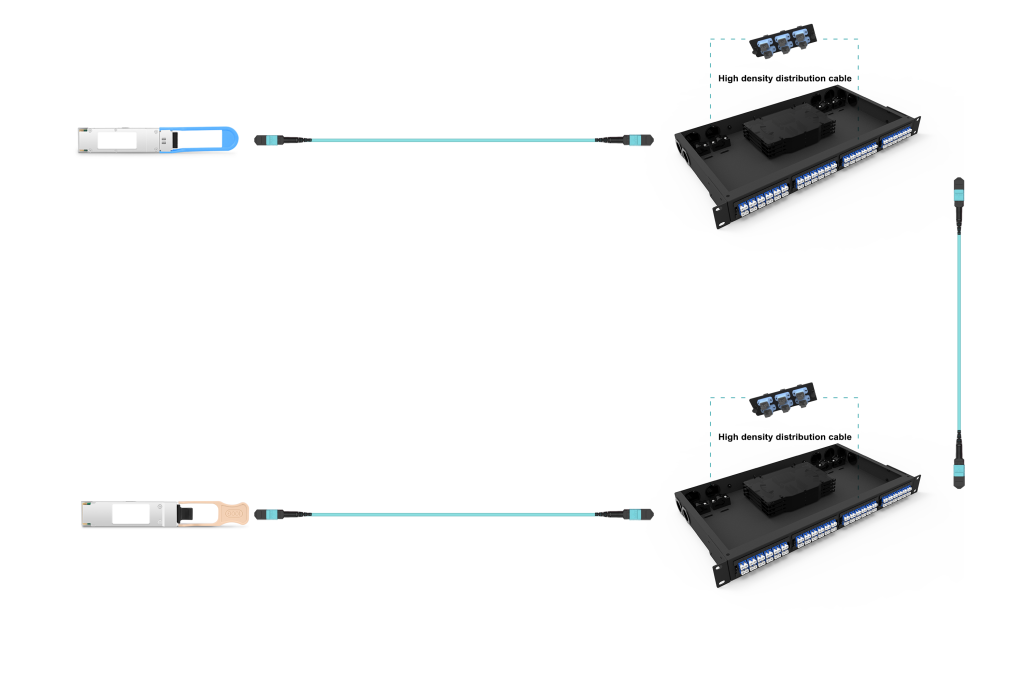

For 10G Ethernet Interconnection
The 10G Ethernet interconnect solution uses a 12 cors fiber connection with a 12 cors MPO/MTP connector at each end. MTP|MPO cable is connected to a 24 cores pre-terminated modular box with 12 duplex LC connectors on the front of the box, each supporting 12 dual-core LC fiber patch cord. The modular box can be installed in a high density distribution box to provide management and protection for fiber optic cables. 1U high density distribution box supports up to 48 duplex LCs (96 fibers).

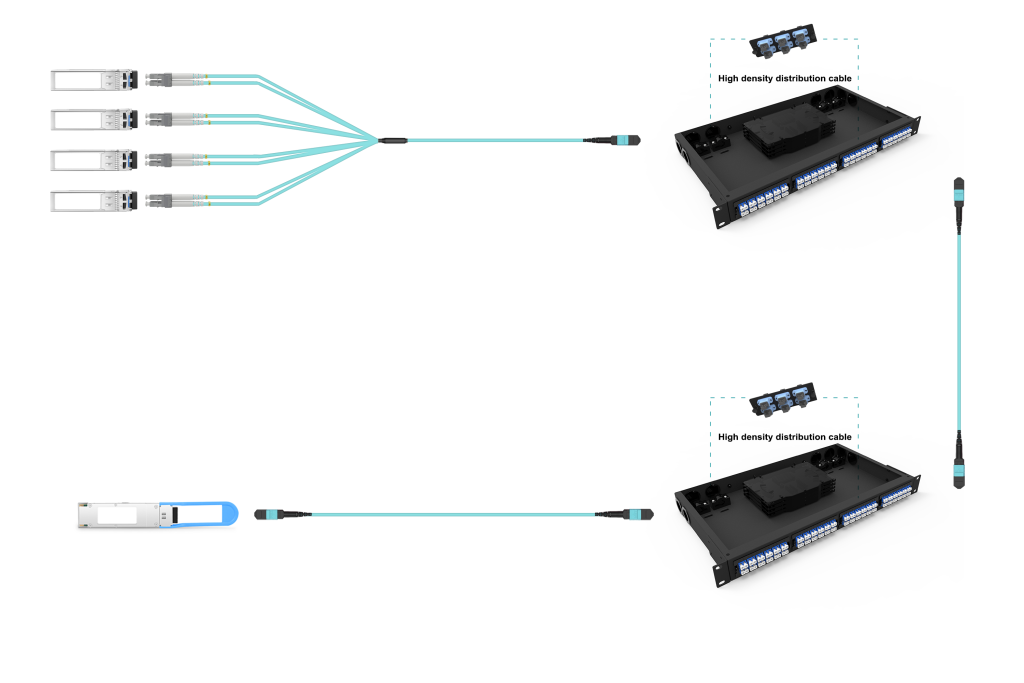

For 10G/40G Ethernet Interconnect
The 10/40G Ethernet interconnect solution uses a 12 cores fiber connection to support four 10G independent links. 12 cores MPO/MTP fiber cable is connected to the adapter panel at one end and to the 24 cores MPO preterminated module box connection module box at the other end, each module box supports 12 duplex LC fiber patch cables.

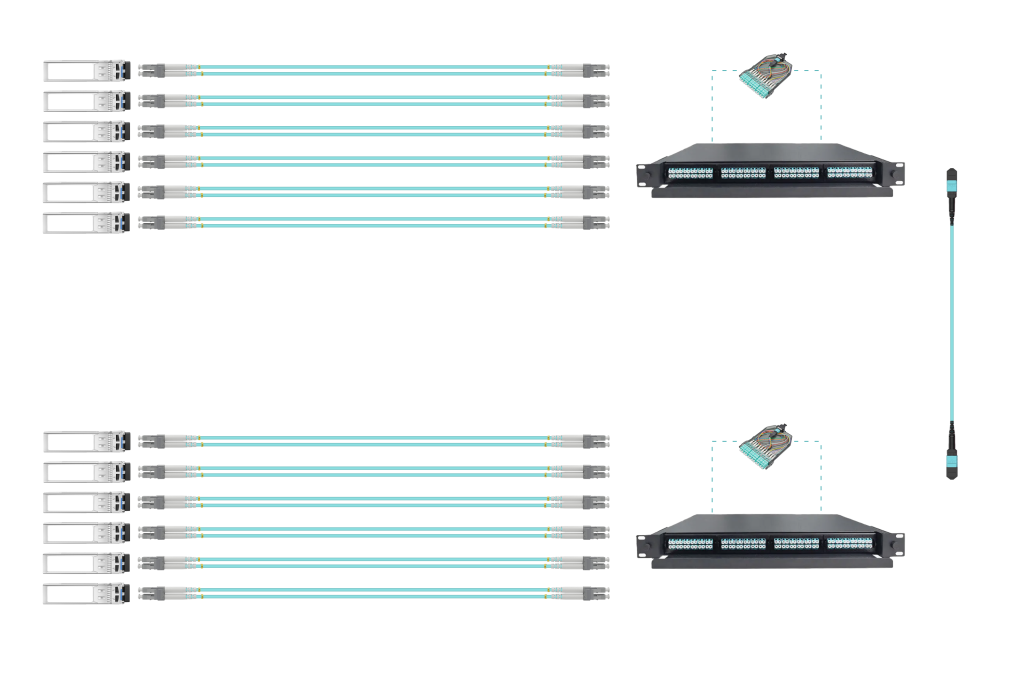

The 10/40G Ethernet interconnect solution uses 12 cores fiber optic connections to support four 10G independent links. 12 cores MPO/MTP fiber optic patchcord are connected to the adapter panel at both ends and each adapter panel supports six MPO/MTP optical cable.
For 40G/100G Ethernet Interconnect
The 40/100G Ethernet interconnect solution uses 12cores fiber optic connections. 12-core MPO/MTP fiber optic patch cable is connected to the MPO adapter panel on both ends.
Conclusion
The 12 cores MTP/MPO fiber cabling solution significantly improves efficiency and cost effectiveness by ensuring optimal fiber utilization, making it highly suitable for future duplex fiber applications and current high bandwidth requirements. Compared to traditional fiber optic patchcord, the 12 cores MTP/MPO optical cable notably reduce both fiber wastage and associated maintenance costs, while simplifying deployment and management processes. AOFPLUS’s MPO/MTP optical cables are industry-leading in terms of optical performance and reliability, and can meet your demanding network needs. For more information, you can contact us at sales@aofplus.com.
