Optical Transceivers QSFP DR4 400G 1310nm 500m 1
Optical Transceivers QSFP DR4 400G 1310nm 500m 2
Optical Transceivers QSFP DR4 400G 1310nm 500m 3
Optical Transceivers QSFP DR4 400G 1310nm 500m 4

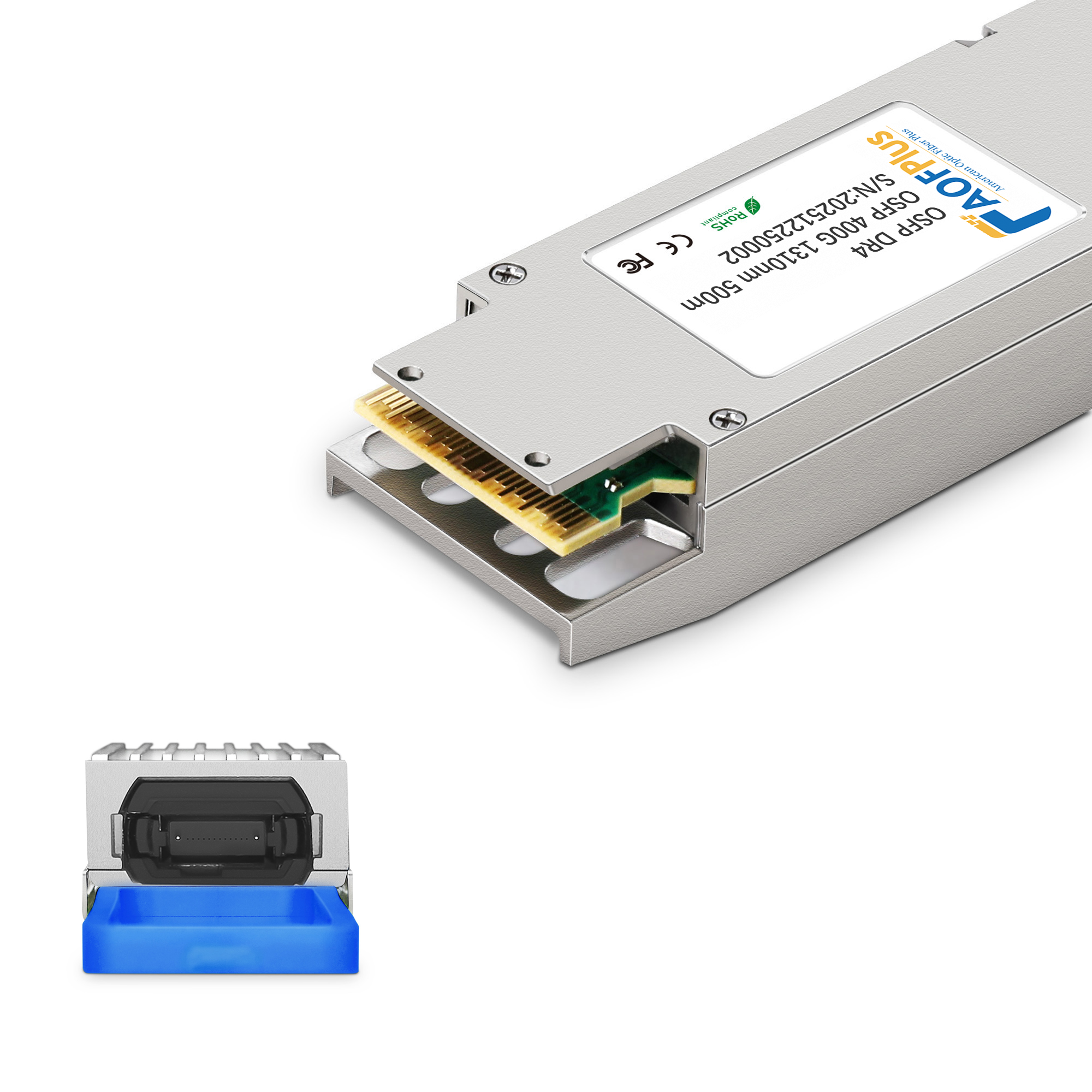

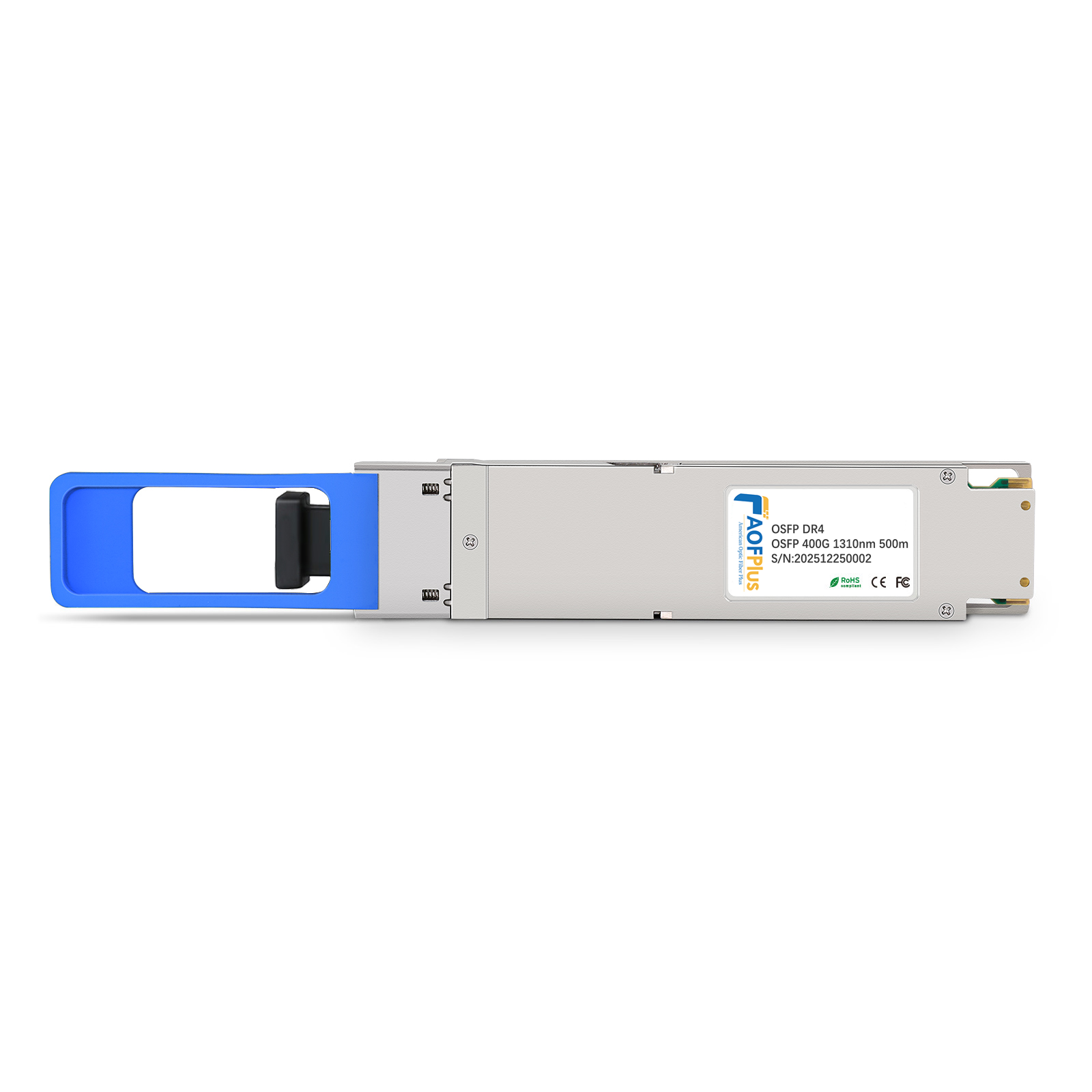

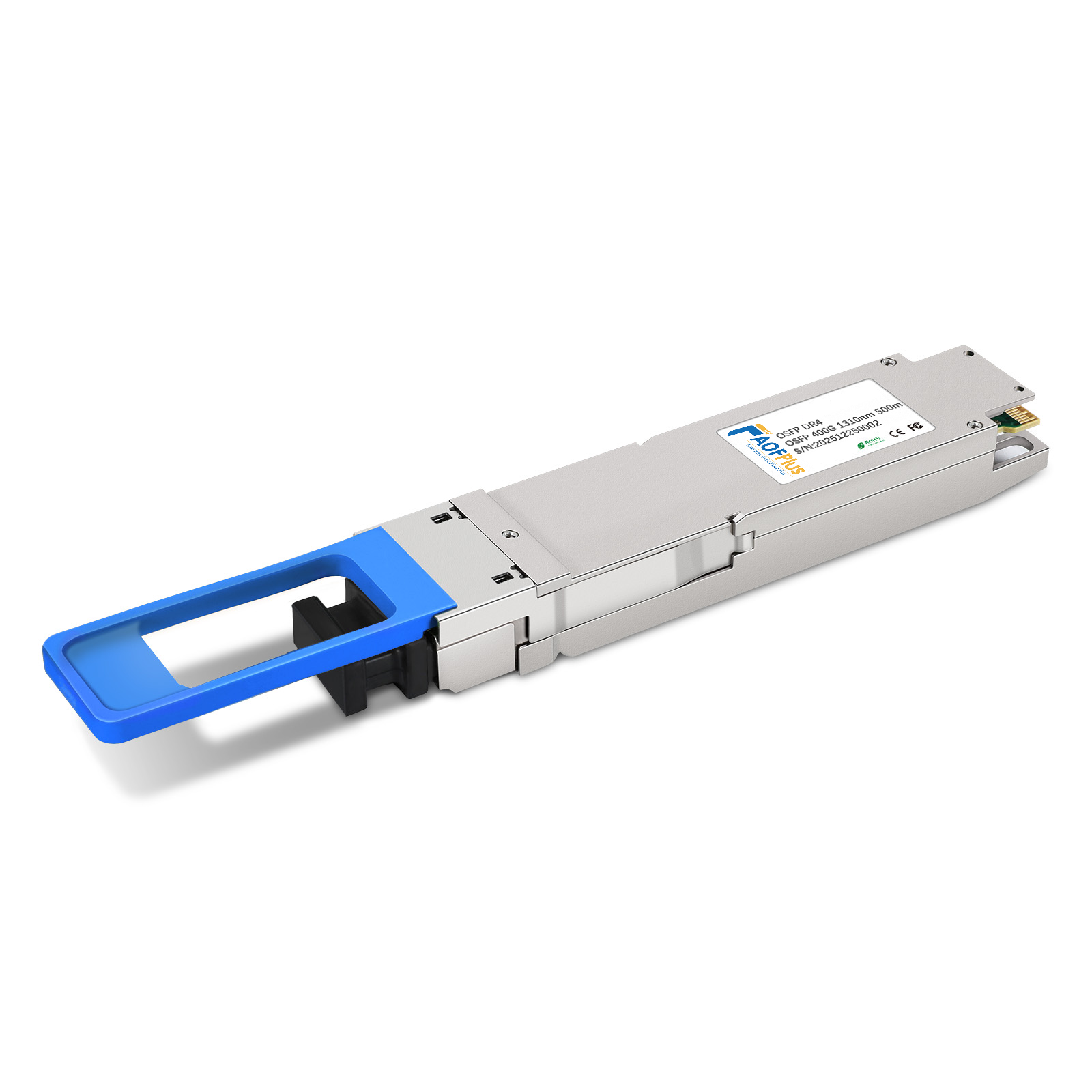

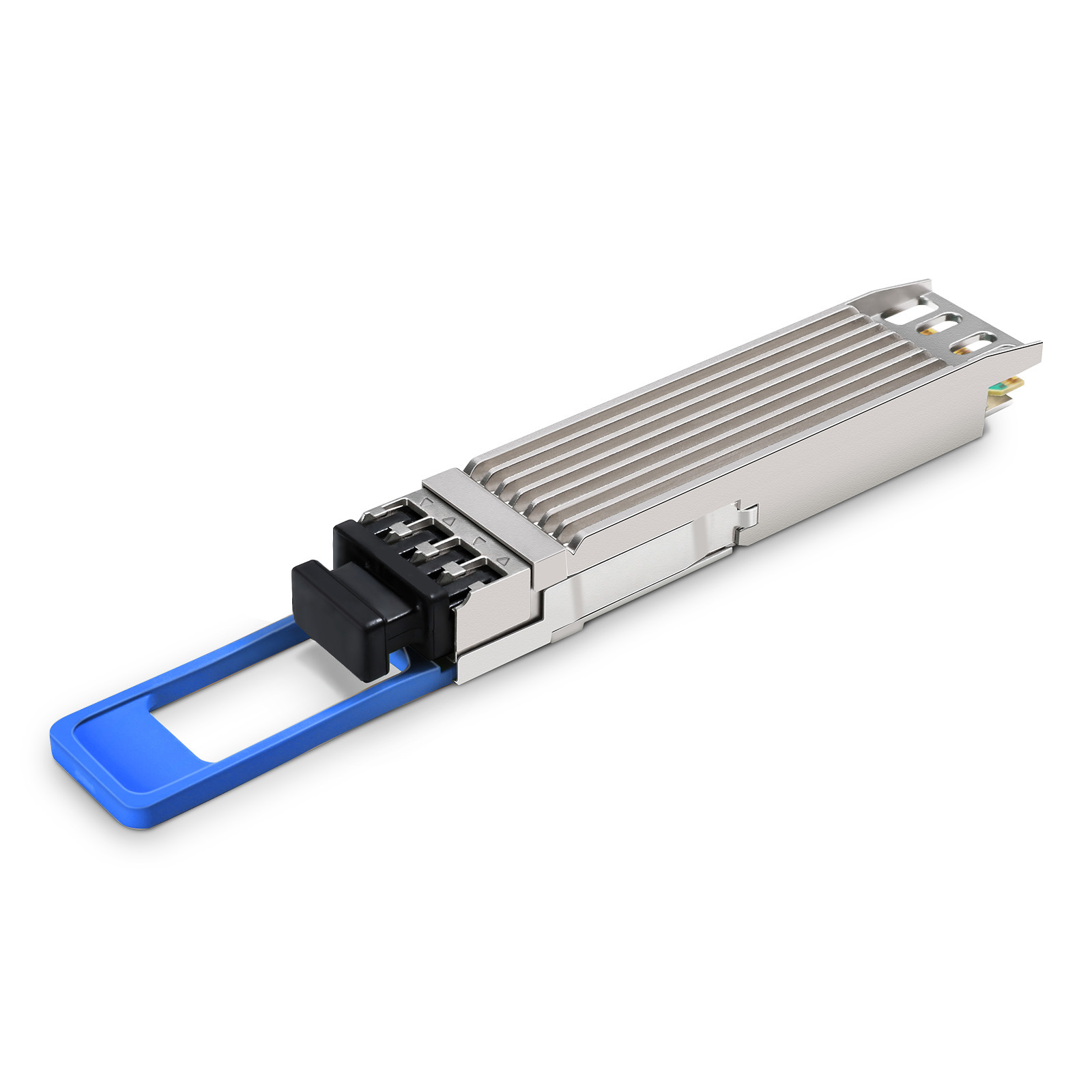

Fiber Optical Transceiver|Optical Module 400G OSFP DR4 1310nm 500m DOM MPO-12/APC Singlemode Cisco Compatible Flat Top

SKU: AOSFP8DR4M500MC

Price range: $887.64 through $1,138.00
Buy more to save

Transceiver Models
QSFP112 SR4 850nm 100mOSFP SR4 850nm 100mQSFP-DD SR8 850nm 100mQSFP-DD SR4 850nm 100mQSFP112 DR4 1310nm 500mOSFP DR4 1310nm 500mQSFP-DD DR4 1310nm 500mQSFP-DD FR4 1310nm 2km
  • Shipping via DHL/FedEx |
  • 3 years Warranty
  • 30 Days Returns
  • 30 Days Exchange
2392586 200

Warranty
Providing industry-leading limited lifetime warranty. Read the table for details of all  products' warranty.

Returns & Exchange
Refunds will be received about  5 business days after the receipt of returned items. Items in stock  for replacement can be shipped within  1 business day. Read the full return policy for details.

  • Free Shipping on Orders over $99 for Whole USA
  • Pre-order within 4-5 weeks
QuantityPrice
1 - 4$1,138.00
5 - 49$1,081.10
50 - 99$1,001.44
100 +$887.64
QuantityPrice
1 - 4$1,138.00
5 - 49$1,081.10
50 - 99$1,001.44
100 +$887.64
QuantityPrice
1 - 4$1,138.00
5 - 49$1,081.10
50 - 99$1,001.44
100 +$887.64
QuantityPrice
1 - 4$1,138.00
5 - 49$1,081.10
50 - 99$1,001.44
100 +$887.64
QuantityPrice
1 - 4$1,138.00
5 - 49$1,081.10
50 - 99$1,001.44
100 +$887.64
QuantityPrice
1 - 4$1,138.00
5 - 49$1,081.10
50 - 99$1,001.44
100 +$887.64
QuantityPrice
1 - 4$1,138.00
5 - 49$1,081.10
50 - 99$1,001.44
100 +$887.64
QuantityPrice
1 - 4$1,138.00
5 - 49$1,081.10
50 - 99$1,001.44
100 +$887.64
QuantityPrice
1 - 4$1,138.00
5 - 49$1,081.10
50 - 99$1,001.44
100 +$887.64
QuantityPrice
1 - 4$1,138.00
5 - 49$1,081.10
50 - 99$1,001.44
100 +$887.64
QuantityPrice
1 - 4$1,138.00
5 - 49$1,081.10
50 - 99$1,001.44
100 +$887.64
QuantityPrice
1 - 4$1,138.00
5 - 49$1,081.10
50 - 99$1,001.44
100 +$887.64
QuantityPrice
1 - 4$1,138.00
5 - 49$1,081.10
50 - 99$1,001.44
100 +$887.64
QuantityPrice
1 - 4$1,138.00
5 - 49$1,081.10
50 - 99$1,001.44
100 +$887.64
QuantityPrice
1 - 4$1,138.00
5 - 49$1,081.10
50 - 99$1,001.44
100 +$887.64
QuantityPrice
1 - 4$1,138.00
5 - 49$1,081.10
50 - 99$1,001.44
100 +$887.64
QuantityPrice
1 - 4$1,138.00
5 - 49$1,081.10
50 - 99$1,001.44
100 +$887.64
QuantityPrice
1 - 4$1,138.00
5 - 49$1,081.10
50 - 99$1,001.44
100 +$887.64
QuantityPrice
1 - 4$1,138.00
5 - 49$1,081.10
50 - 99$1,001.44
100 +$887.64
QuantityPrice
1 - 4$1,138.00
5 - 49$1,081.10
50 - 99$1,001.44
100 +$887.64
QuantityPrice
1 - 4$1,138.00
5 - 49$1,081.10
50 - 99$1,001.44
100 +$887.64
QuantityPrice
1 - 4$1,138.00
5 - 49$1,081.10
50 - 99$1,001.44
100 +$887.64
QuantityPrice
1 - 4$1,138.00
5 - 49$1,081.10
50 - 99$1,001.44
100 +$887.64
QuantityPrice
1 - 4$1,138.00
5 - 49$1,081.10
50 - 99$1,001.44
100 +$887.64
QuantityPrice
1 - 4$1,138.00
5 - 49$1,081.10
50 - 99$1,001.44
100 +$887.64
QuantityPrice
1 - 4$1,138.00
5 - 49$1,081.10
50 - 99$1,001.44
100 +$887.64
QuantityPrice
1 - 4$1,138.00
5 - 49$1,081.10
50 - 99$1,001.44
100 +$887.64
QuantityPrice
1 - 4$1,138.00
5 - 49$1,081.10
50 - 99$1,001.44
100 +$887.64
QuantityPrice
1 - 4$1,138.00
5 - 49$1,081.10
50 - 99$1,001.44
100 +$887.64
QuantityPrice
1 - 4$1,138.00
5 - 49$1,081.10
50 - 99$1,001.44
100 +$887.64
QuantityPrice
1 - 4$1,138.00
5 - 49$1,081.10
50 - 99$1,001.44
100 +$887.64
QuantityPrice
1 - 4$1,138.00
5 - 49$1,081.10
50 - 99$1,001.44
100 +$887.64
QuantityPrice
1 - 4$1,138.00
5 - 49$1,081.10
50 - 99$1,001.44
100 +$887.64
QuantityPrice
1 - 4$1,138.00
5 - 49$1,081.10
50 - 99$1,001.44
100 +$887.64
QuantityPrice
1 - 4$1,138.00
5 - 49$1,081.10
50 - 99$1,001.44
100 +$887.64
QuantityPrice
1 - 4$1,138.00
5 - 49$1,081.10
50 - 99$1,001.44
100 +$887.64
QuantityPrice
1 - 4$1,138.00
5 - 49$1,081.10
50 - 99$1,001.44
100 +$887.64
QuantityPrice
1 - 4$1,138.00
5 - 49$1,081.10
50 - 99$1,001.44
100 +$887.64
QuantityPrice
1 - 4$1,138.00
5 - 49$1,081.10
50 - 99$1,001.44
100 +$887.64

Fiber Optical Transceiver|Optical Module 400G OSFP DR4 1310nm 500m DOM MPO-12/APC Singlemode Cisco Compatible Flat Top

Specifications

Purchase AOFPLUS's fiber module 400G OSFP DR4 DOM MPO-12/APC is an 400Gb/s Single-port OSFP, DR4 single mode parallel transceiver using a single, 4-channel MPO-12/APC optical connector. The Reach 4-channel (DR4) design uses 100G-PAM4 modulation and has a maximum fiber reach of 500-meters using OS2 single mode fibers. It is qualified for use in end-to-end systems.
Form FactorSingle-port OSFP Flat TopMax. Data Rate425Gbps (4x106.25Gbps)
Wavelength1310nmMax. Cable Distance500m
ConnectorMPO-12/APCMediaSMF
Transmitter TypeDFBReceiver TypePIN
TX Power-2.9~4dBmMinimum Receiver Power-5.9dBm
Power Budget3dBReceiver Overload4.0dBm
Power Consumption≤9WExtinction Ratio>3.5dB
DDM/DOMSupportedCommercial Temperature Range0℃~70℃(32°F to 158°F)
Modulation (Electrical)4x100G-PAM4Modulation (Optical)4x100G-PAM4
CDR (Clock and Data Recovery)SupportedInbuilt FECYes
Core Size9/125umPackaging TechnologyCOB
