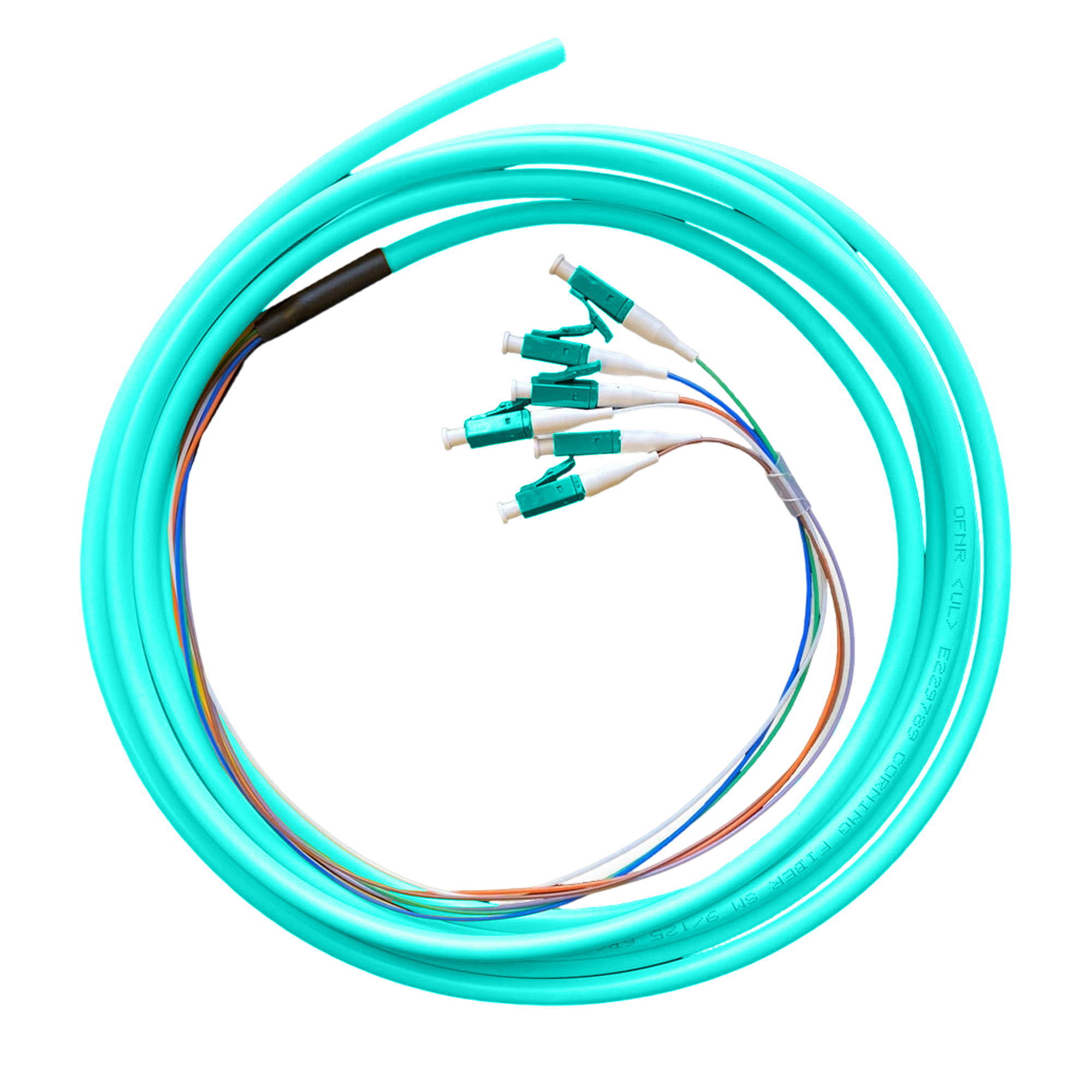

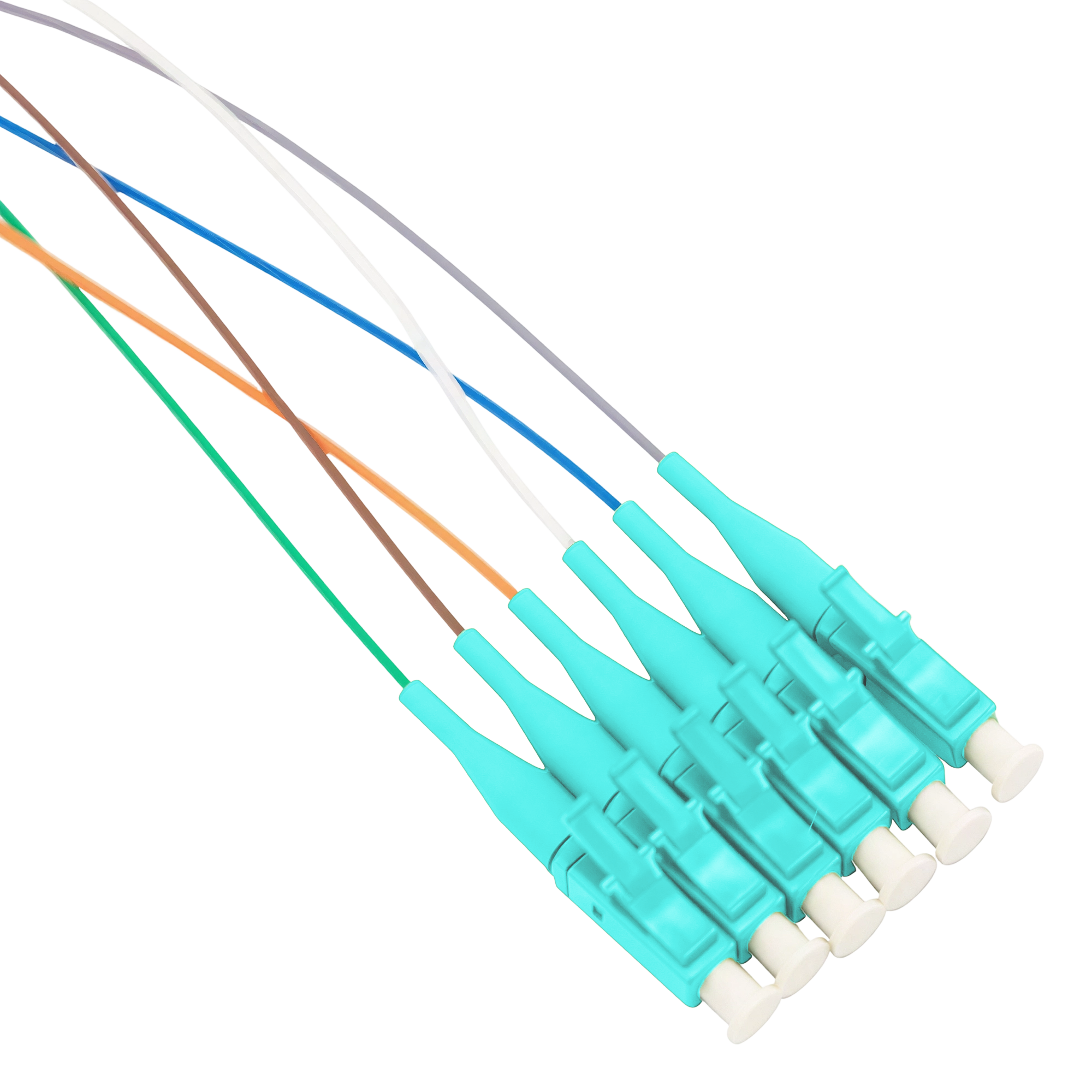

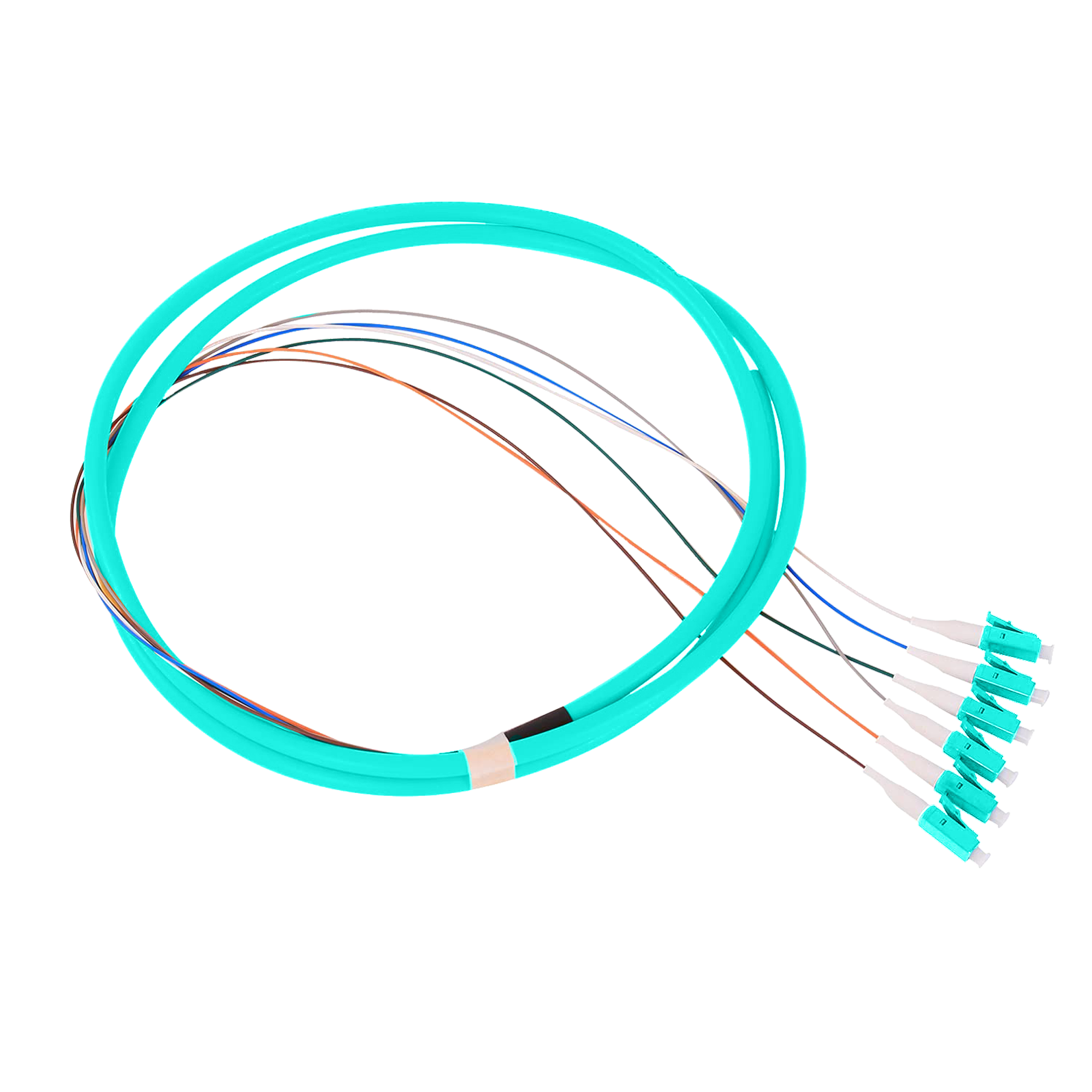

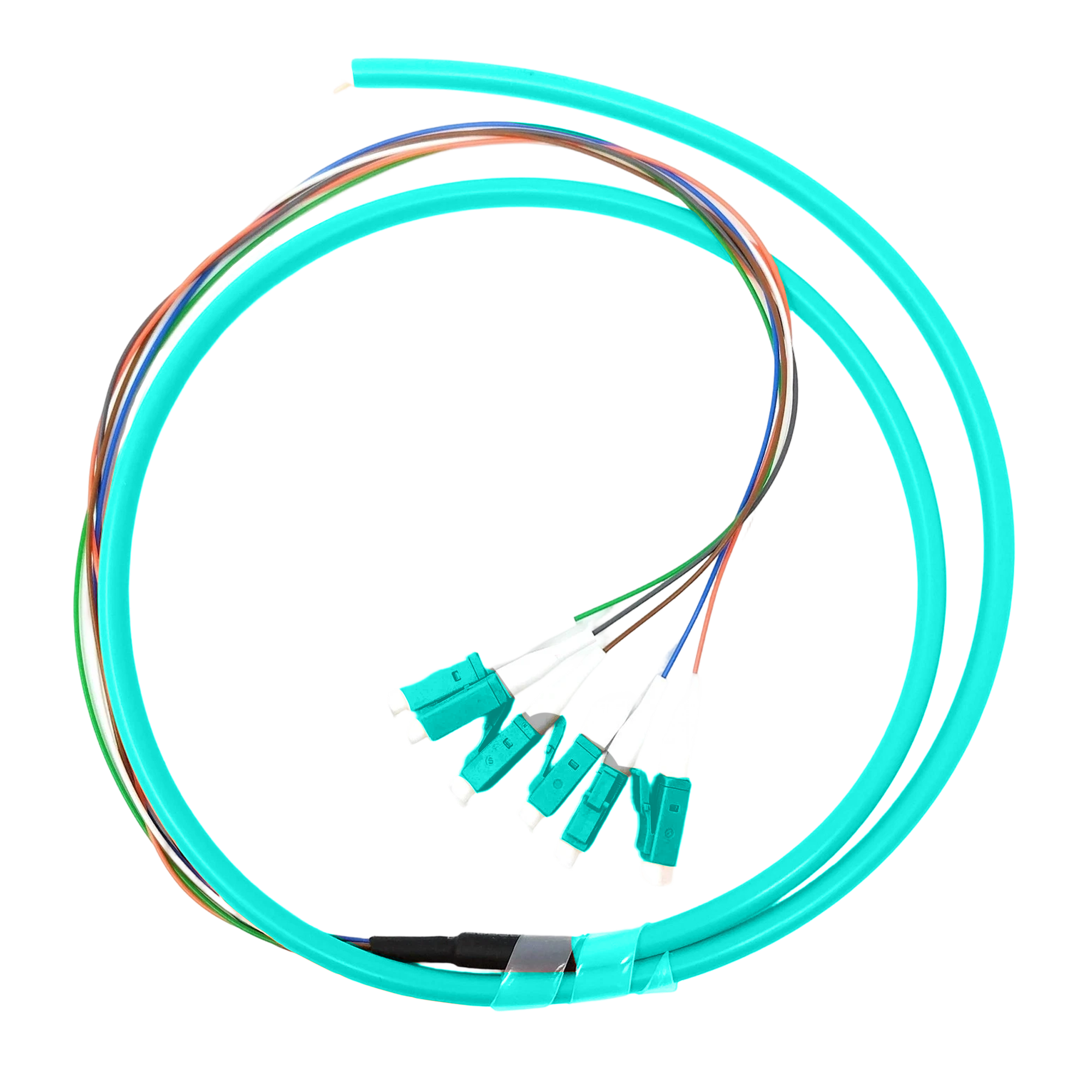

6-core branch fiber optic pigtail is constructed with multimode OM3 Corning 50/125um fibers. Equipped with LC/PC connectors, the fiber optic pigtail offers superior low insertion loss ??0.3(dB) and high return loss ??35(dB). Enclosed in a PVC OFNR outer jacket, fiber optic pigtail provides excellent flame retardancy, meeting fire safety standards. The fiber optic pigtail undergos rigorous factory testing to ensure excellent stability.

Connector A	LC PC	Connector B	Unterminated
Fiber Count	6 Fiber	Fiber Grade	Bend Insensitive
Fiber Mode	OM3 50/125um	Wavelength	850/1300nm
Breakout Length	0.3m	Breakout Cable Diameter(OD)	0.9mm
Cable Type	Distribution	Cable Jacket	PVC OFNR
Min. Bend Radius (Optical Fiber)	7.5mm	Min. Bend Radius (Fiber Cable)	20/10D (Dynamic/Static)
Connector Durability	500 Times	Standard	RoHS Compliant
Attenuation at 850nm	0.30dB/km	Attenuation at 1300nmm	1.0dB/km
Insertion Loss	≤0.3dB	Return Loss	≥35dB
Operating Temperature	-10 to 70°C (14 to 158°F)	Storage Temperature	-20 to 70°C (-4 to 158°F)
