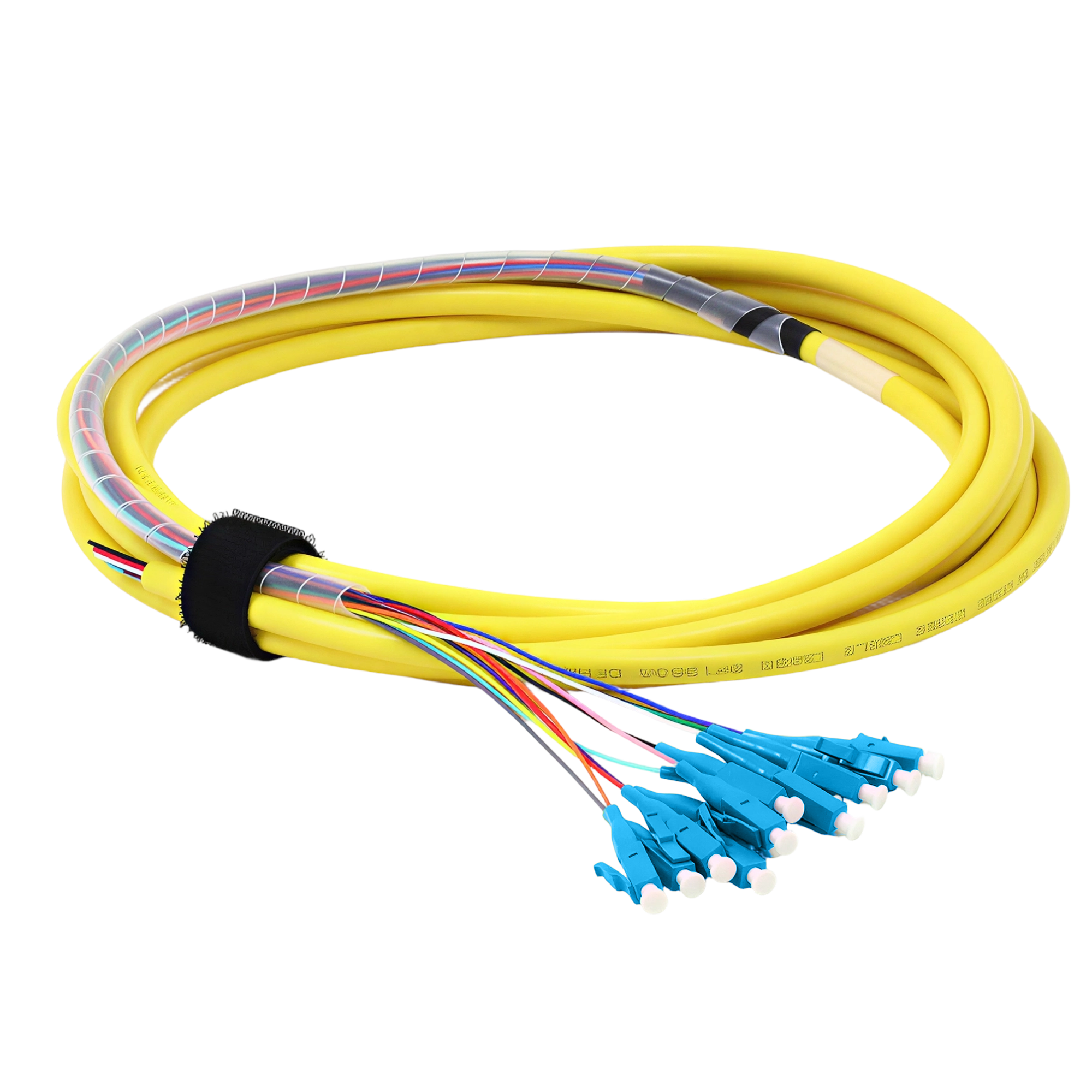

12C fanout fiber optic pigtail 1

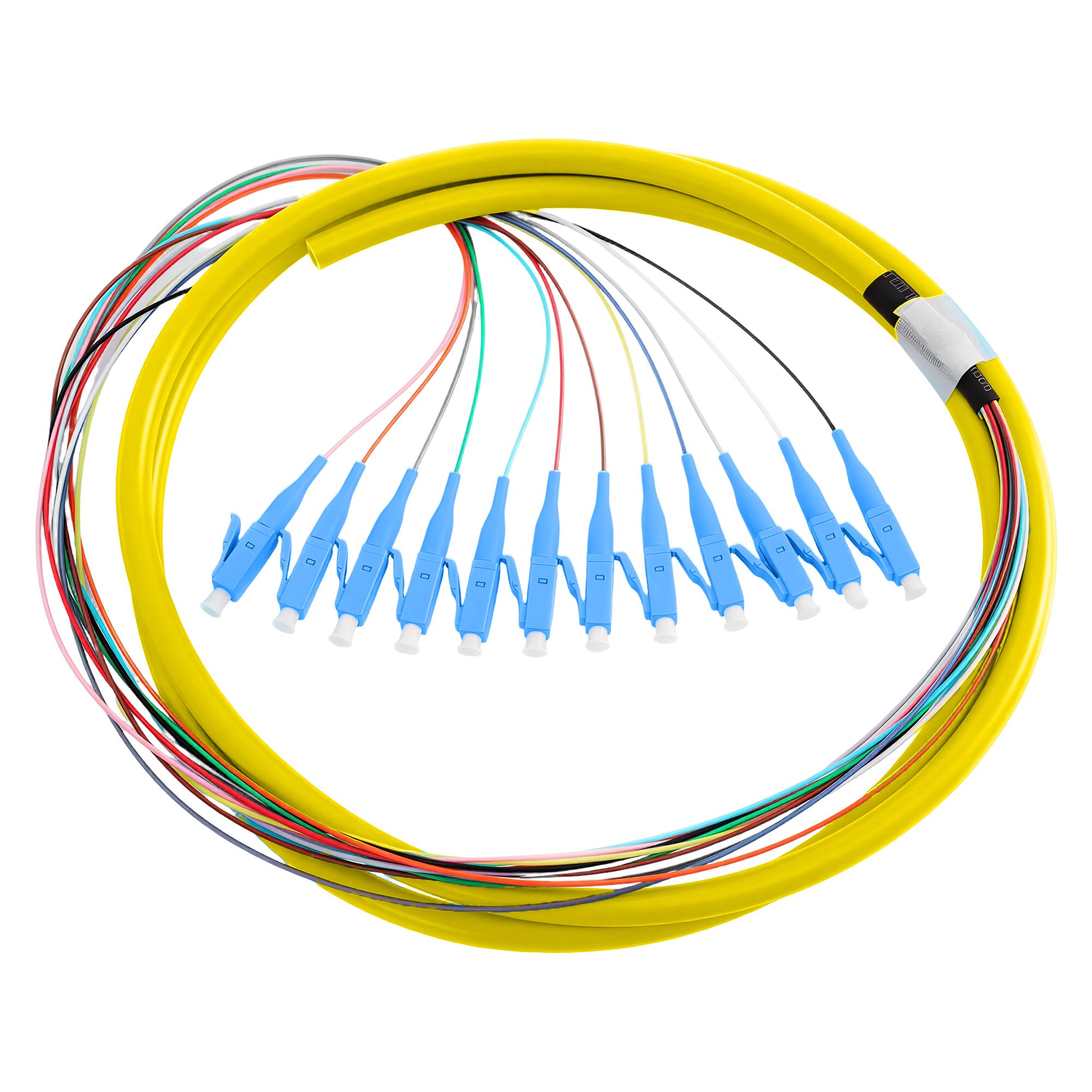

12C fanout fiber optic pigtail 2

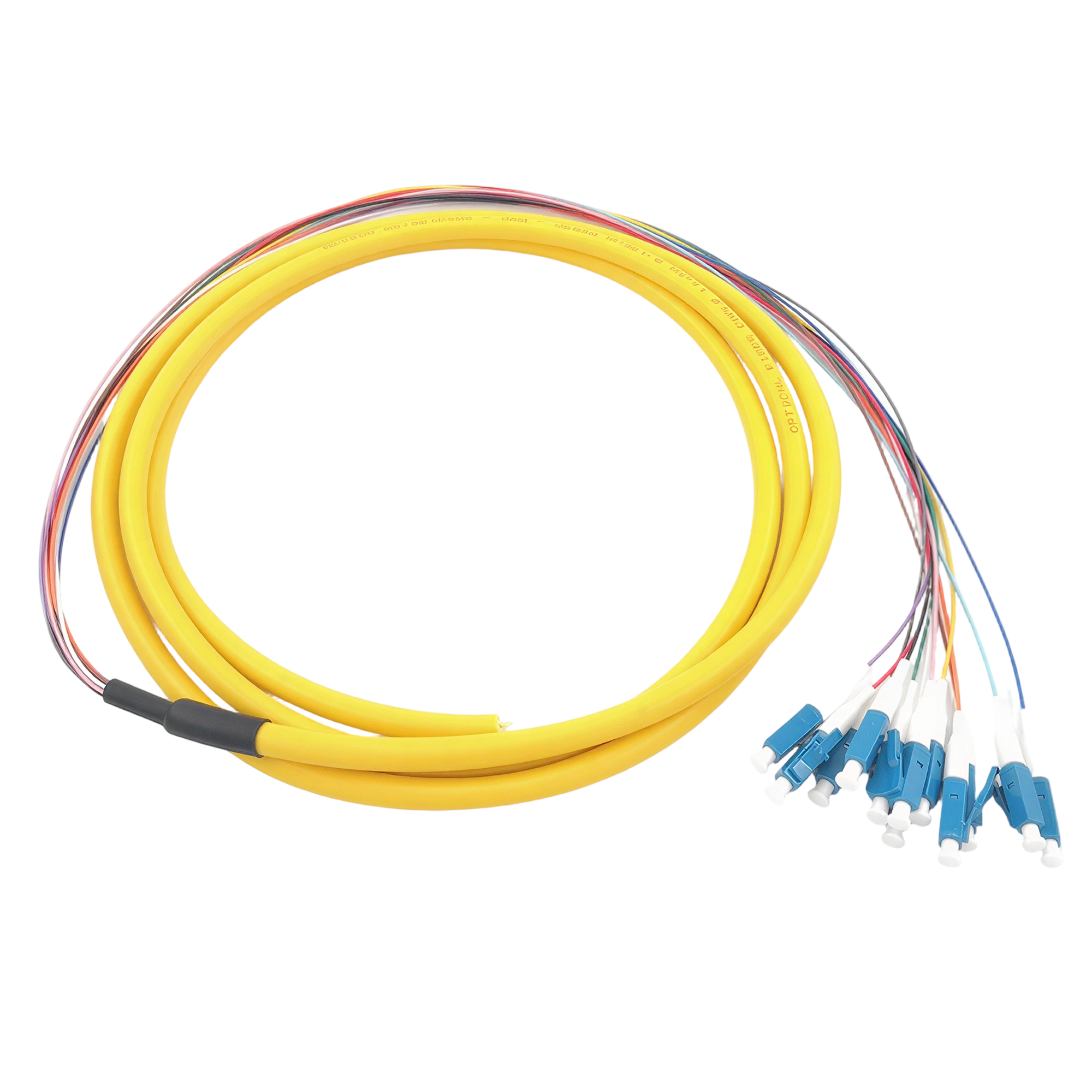

12C fanout fiber optic pigtail 3
12C fanout fiber optic pigtail 4

Fiber Optic Patch Cable|Fanout Fiber Optic Pigtails 12Fibers LC/UPC Single Mode OS2 Corning SMF-28 Ultra W/Breakout 0.3m 0.9mm PVC OFNR 5.3m(17.3ft)

SKU: ADLUS212R05

$23.40

Length
1.3m(4.2ft)2.3m(7.5ft)3.3m(10.8ft)5.3m(17.3ft)7.3m(23.9ft)10.3m(33.7ft)
  • Shipping via DHL/FedEx |
  • 1 year Warranty
  • 30 Days Returns
  • 30 Days Exchange
2392586 200

Warranty
Providing industry-leading limited lifetime warranty. Read the table for details of all  products' warranty.

Returns & Exchange
Refunds will be received about  5 business days after the receipt of returned items. Items in stock  for replacement can be shipped within  1 business day. Read the full return policy for details.

  • Free Shipping on Orders over $99 for Whole USA
  • If order <100pcs, ship within 48hours(except Friday); if order 101-300pcs, ship in 4 working days; if order 300pcs+, negotiate shipping time.

Fiber Optic Patch Cable|Fanout Fiber Optic Pigtails 12Fibers LC/UPC Single Mode OS2 Corning SMF-28 Ultra W/Breakout 0.3m 0.9mm PVC OFNR 5.3m(17.3ft)

Specifications

Distribution 12-core fiber optic pigtail is equipped with LC/UPC connectors. Made from single mode OS2 9/125um Corning SMF-28 Ultra G657A1 fibers, the fiber optic pigtail features PVC OFNR (Optical Fiber Non-Conductive Riser) jacket withstanding environments ranging from -20 ?? to 70 ??. The distribution fiber optic pigtail is an ideal choice for your network.
Connector ALC UPCConnector BUnterminated
Fiber Count12 FiberFiber GradeG.657.A1
Fiber ModeOS2 9/125μmWavelength1310/1550nm
Breakout Length0.3mBreakout Cable Diameter(OD)0.9mm
Cable TypeDistributionCable JacketPVC OFNR
Min. Bend Radius (Optical Fiber)10mmMin. Bend Radius (Fiber Cable)10/5D (Dynamic/Static)
Connector Durability500 TimesStandardRoHS Compliant
Attenuation at 1310nm0.36dB/kmAttenuation at 1550nm0.22dB/km
Insertion Loss≤0.3dBReturn LossUPC≥50dB
Operating Temperature-10 to 70°C (14 to 158°F)Storage Temperature-20 to 70°C (-4 to 158°F)
