AOFPLUS’s MPO|MTO fiber patch cord can be used with a variety of products, such as MPO/MTP fiber optic patch panel, MPO|MTP cassette, transceiver module to provide solutions for your data center that are designed to deliver the most advanced network performance, with a variety of density and connector options for maximum compatibility. OM3 MPO|MTP cabling solution comprises various MPO|MTP products such as trunk MPO|MTP fiber patch cords, fan-out MPO|MTP fiber patch cables, MPO|MTP adapters, MPO/MTP cassettes and MPO|MTP fiber patch panels or etc. Explore our product offering, for a high performance data center network.

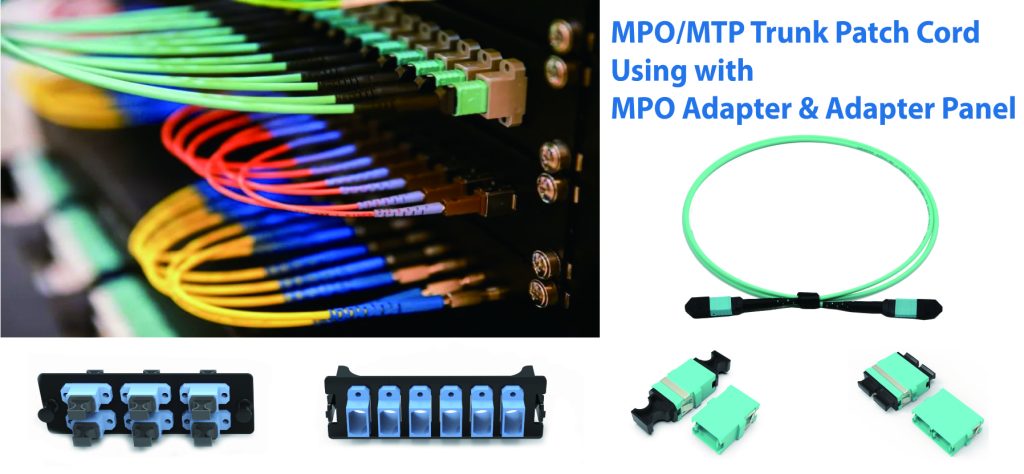

MPO/MTP Trunk Patch Cord Using with MPO Adapter & Adapter Panel
The transmission distance of multimode OM3 MPO|MTP cable could be up to 300meters at 10Gbps, or 100meters at 40Gbps. Thus, multi-mode OM3 MPO|MTP cable is mostly used in fiber optic racks or fiber optic cabinets for direct data connections over short distances. By using fiber optic adapter panel, trunk cables are connected to multiple MPO|MTP cable. The fiber optic adapter panel is equipped with MPO/MTP adapters. AOFPLUS provides high quality MPO/MTP fiber optic adapters for you to choose.

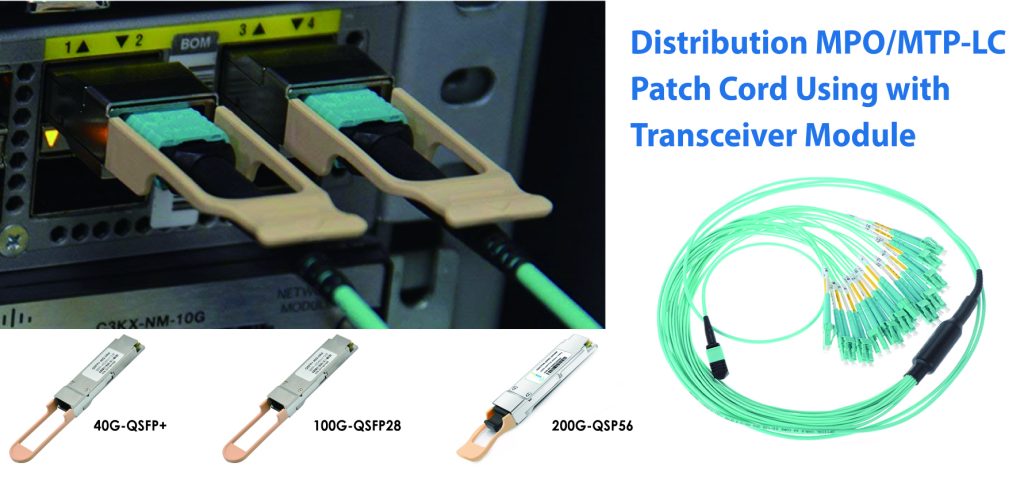

Distribution MPO/MTP-LC Patch Cord Using with Transceiver Module
The multimode OM3 MPO|MTP cable used to connect SR series of optical module to achieve 40G/100G/200G/400G data connection and upgrade. For example, the 8C/12C/24C distribution MPO/MTP-LC cable could connect 1*100G QSFP28 SR4 optical module to 4*25G SFP28 SR optical modules. Similarly, 1*100G QSFP28 PSM4 optical module connect to 4*25G SFP28 LR optical modules via 8C/12C/24C MPO/MTP-LC cable.

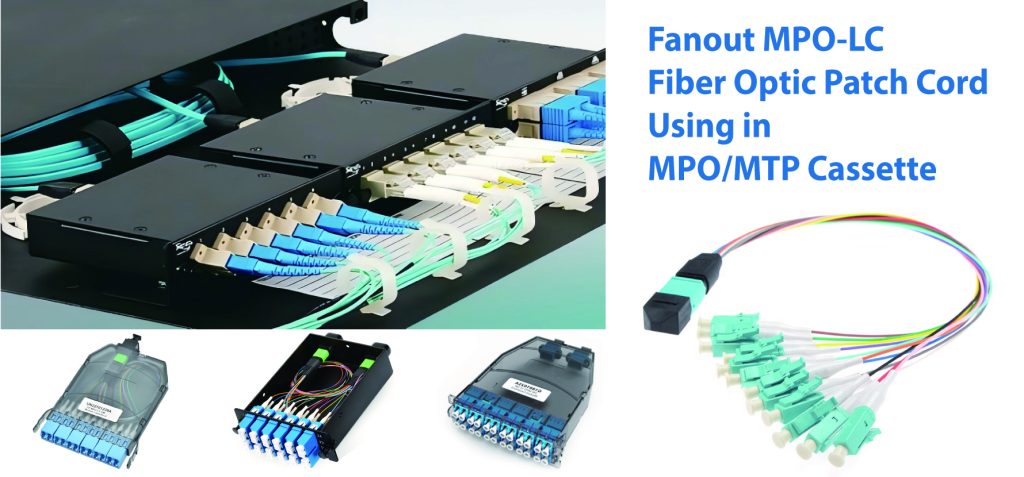

Fanout MPO-LC Patch Cord Using in MPO/MTP Cassette
AOFPLUS offers a comprehension of fanout MPO|MTP cable that support 12 (for LC or SC duplex adapter type) or 24 (for LC Quad Duplex adapter type) optical fibers, Fanout MPO-LC patch cords is support optical connections in high density networks, and mainly used in MPO cassette, which can be loaded into MPO|MTP fiber optic patch panel (1U or 2U types) for structured high-density fiber optic cabling in data centers.
